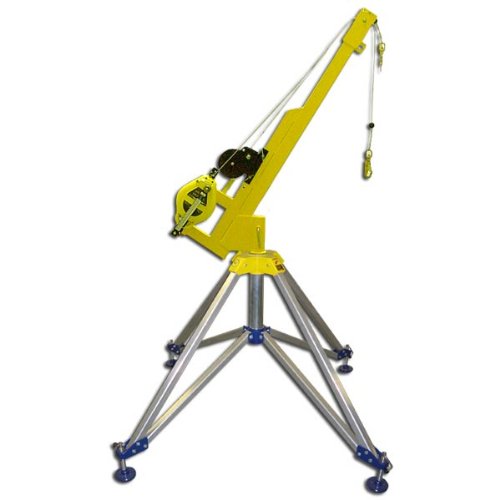

French Creek Quad Pod 50' Rescue Retractable 4 Leg Davit Arm System with 50' Winch

French Creek Quad Pod 50' Rescue Retractable 4 Leg Davit Arm System with 50' Winch

FCP's rugged and versatile Quad Pod System can be used as an alternative to a Tripod System. The free standing portable base has adjustable feet and folds for easy carrying. The arm pivots 360°, but locks while retrieving. The Quad Pod includes a fall arrest/rescue retractable unit, and a winch unit with raise and lower capabilities. Looking for an alternative to a Tripod System? Well the Complete Quad Pod by French Creek is your answer!

• The free standing portable base has adjustable feet, so it will fit many applications.
• This rugged, and durable system features a pivoting arm that will rotate a full 360 degrees for maximum versatility.
• Folds up nicely so you can take it with you from job to job.
• Features a fall arrest/rescue unit and a winch unit with raising and lowering capabilities.
• Meets or exceeds OSHA requirements for confined space rescue.
• It can be used for confined space and rescue applications as an alternative to a Tripod System.
• The free standing portable base with adjustable feet is foldable.
• Proudly made in the U.S.A.!

The davit arm pivots 360 degrees and includes a 50' fall arrest/rescue retractable unit, and a 50' winch unit with raising and lowering capabilities. With the capabilities of the interchangeable arm, the Quad Pod base and the Davit base can be shared between fall arrest, raising and lowering arm.

• The Complete Quad Pod Davit Arm System FCPQ200 comes with the following
• 4-Leg Mobile Base and Boom
• R50G 50' Galvanized Wire Rope
• MW Series Winch MW50G

Specifications:

Davit Arm: Steel - powder coated Base
Legs: Aluminum Base
Brackets: Steel powder coated

3-Way Unit:

Capacity: 350 lbs
Housing: Aluminum
Rope Drum: Aluminum
Brake Pawls: Bronze
Main Spring: Steel
Fasteners: Stainless Steel
Snap Hook: RL-28 Plated Steel swivel snap hook with a ¾" gate with a impact indicator
Wire Rope: 3/16" 7 x 19 galvanized or stainless steel
Synthetic Rope: 3/16" 12-strand braided Technora®

Material Winch:

Housing: Plated Steel
Drive Gear: Plated Steel
Non-Drive Gear: Plated Steel
Ratio: 5.1:1
Capacity:

Materials: 500 lbs
Personnel: 350 lbs

Rope:

MW50G: 50' Galvanized 3/16 wire rope
MW50SS: 50' Stainless Steel 3/16 rope
MW50T: 50' Technora® Synthetic Rope
# 49 Swivel Locking Snap Hook: ¾" gate opening
Cold formed zinc chromate plated 100% proof loaded to 3600 lbs minimal tensile: 5000 lbs
