FallTech

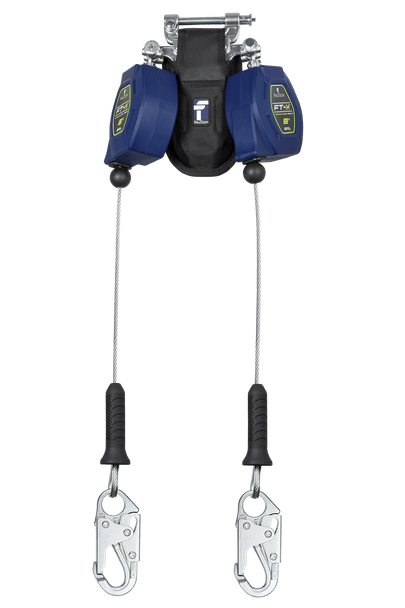

FallTech 8' FT-X Class 2 Twin-leg Leading Edge SRL - Steel Snap Hooks - 82808TP1
- SKU:
- 365R-82808TP1
- UPC:
- 848013031884
- MPN:
- 82808TP1
- Availability:
- In Stock, Ships Quick!
- Shipping:
- Calculated at Checkout
In Stock
Description
FallTech 8' FT-X Class 2 Twin-leg Leading Edge SRL - Steel Snap Hooks - 82808TP1
Applications:
- Lightest SRL in its class with less than 5 lbs. of effective weight on the back while device is in use
- Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity
- Features comprehensive fall clearance charts and tables inside the energy absorber cover
- Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
- Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
- Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.
- Features SpeedLink field replaceability of damaged retractable units, lowering overall cost of ownership and reducing equipment down time. Request SpeedLink Spanner Tool
- Replacement retractable part number is 82808RP1
- Complies with ANSI Z359.14-2021 Class 2 SRL-P. Learn more and download White Paper
Product Specs:
ANSI Z359.14-2021 SRL Class 1 or 2 | Class 2 |
Family Group | FT-X Cable Class 2 Leading Edge Personal SRL-P |
ANSI | ANSI Class 2 SRL-P Compliant |
Brand | FT-X Cable Leading Edge |
Configuration | Twin-leg |
CSA | CSA Compliant |
Length | 8' |
Lifeline Material | Galvanized Steel Cable |
OSHA | OSHA Compliant |
Personal SRL Anchorage Connector | Snap Hook(s) |
Personal SRL Anchorage Connector Material | Plated Alloy Steel |
Personal SRL Dorsal Connector | Dorsal SRL Slide Connector |
Personal SRL Dorsal Connector Material | Aluminum Alloy |
SRL Type | SRL-P |
Performance Detail:
Static Strength | 3,600 lb min. |
ANSI SRL Class/Type | Class 2 SRL-P |
Avg. Arrest Force | 1,350 lb max. |
Max. Arrest Force | 1,800 lb |
Max. Arrest Distance | 42" |
ANSI User Capacity | 130 to 310 lb max. |
OSHA User Capacity | 130 to 420 lb max. |
Material Specs:
Cable | 3/16" galvanized steel; 3,600 lb min. static strength |
Energy Absorber | Polyester tear-away |
Anchorage Connector | Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength |
Dorsal Connector | Aluminum alloy; 3,600 lb min. |
SRL Class: Class 2
MFG Part #: 82808TP1
UPC#: 848013031884
Additional Information
Type: |
Cable |
Length: |
8 ft. |
Type: |
Class 2 Compliant |
Availability: |
In Stock |
