Eagle Manufacturing

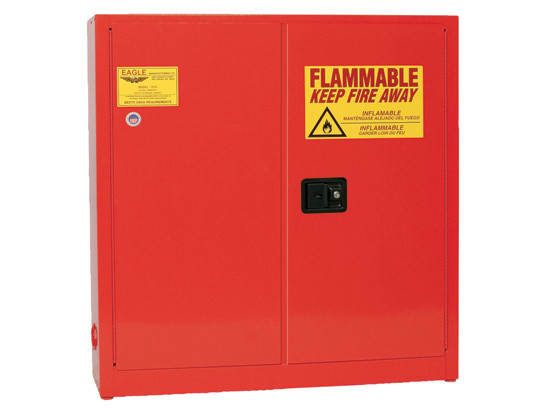

Eagle Paint and Ink Aerosol Can Safety Cabinet - 24 Gallon - 3 Shelves - 2 Door - Manual Close - Red - 1976XRED
- SKU:
- 430-EAG1976XRED
- UPC:
- 048441690794
- MPN:
- 1976XRED
- Shipping:
- Calculated at Checkout
Description
Eagle Paint and Ink Aerosol Can Safety Cabinet - 24 Gallon - 3 Shelves - 2 Door - Manual Close - Red - 1976XRED
Eagle 24 Gallon, manual close, Aerosol Can Storage Paint and Ink Safety Cabinets come with extra shelves to maximize storage space. Constructed of 18-gauge (1 mm) steel, the sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.
Product Info:
- Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
- Constructed of 18-gauge steel
- Lead-free, high-gloss, baked-on powder finish
- Continuous piano hinges
- Ground connection
- Four adjustable galvanized leveling legs
- Trilingual warning labels
- 2 in (5.1 cm) raised leakproof sill
- Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
- Internal and external welded construction
- Two 2 in (5.1 cm) internal vents with fire baffle and cap
- Flush mounted door handle with key lock
- Three-point stainless steel bullet latching system
- 3 in (7.6 cm) centers for shelf brackets
Category | Safety Cabinets |
Sub Category | Paint Safety Cabinets |
Capacity in Gallon | 24 |
Color | Red |
Cabinet Format | Wall Mount |
Construction Material | 18-Gauge Steel |
Door Style | Manual Close |
Number of Shelves | 3 |
Shelf Model Number | 29938 |
Shelf Depth | 8.6" (21.9 cm) |
FM Approval | Yes |
Accessory 1 | 29938 |
Compliance: NFPA code 30 | Yes |
Compliance: OSHA | Yes |
Uniform Fire Code | No |
Volume Unit (Cubic Feet) | 17.5 CF |
