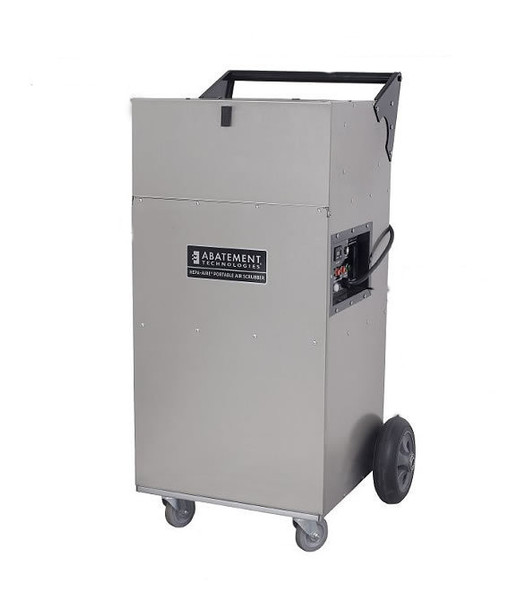

Abatement Techonologies PAS1200 HEPA-Aire Portable Air Scrubber (150cfm-900cfm)

Abatement Techonologies PAS1200 HEPA-Aire Portable Air Scrubber (150cfm-900cfm)

Compact, Upright Design Fits Easily into Tight Spaces

The full-feature HEPA-AIRE PAS1200 Portable Air Scrubber from Abatement Technologies^® is the stainless-steel counterpart to our PRED1200 model, with similar performance characteristics.

The Abatement Technologies PAS1200 features variable airflow control from 150 cfm to 900 cfm. Multiple units can be daisy-chained on one 15-amp circuit via the GFCI-protected duplex receptacles. The PAS1200 is capable of maintaining 6 ACH in spaces up to 7,500-9,000 ft³ at peak rated airflow.

The PAS1200 Portable Air Scrubber is designed to employ up to four filter stages to remove potentially hazardous airborne particles from water-loss restoration projects.

• First stage pre-filter - Inexpensive 1"-deep pre-filter for larger particles
• Second stage pre-filter - 2"-deep pleated filter for medium-sized particles
• Third stage pre-filter (optional, not included with the unit) - 2"-deep high-capacity carbon filter for gases and odors
• Final stage - Tested & certified 99.97%-efficient metal-frame HEPA filter

Features of the HEPA-AIRE PAS1200 Portable Air Scrubber include:

• Easy to Transport - 8” non-marking rear wheels with smooth tires roll quietly and protect floors
• Powerful Blower - High-efficiency airfoil blower provides 6 ACH @ 7,500-9,000 ft³
• Maneuverable in Small Spaces - Front swivel casters allow the PAS1200 to “turn on a dime” in tight spaces
• Solid-Rivet Aircraft Construction - Strong leak-resistant cabinets
• User-Friendly Controls - A complete array of convenient controls enables users to continuously monitor the operating status of the PAS1200
• Safety First - ETL/ETLc-certified to conform to UL507 and CSA 22.2 safety standards
• Easy 'No Tools' Pre-Filter Access - Fast filter changes
• Separate Pre-Filter Compartments - Less bypass, helps prevent premature HEPA loading
• 230 VAC/50 Hz Export Model - PAS1200TF runs on 230 Volt/50 Hz current (1,000-1,250 m³/hr.)

Filters Pollutants Using up to Four Stages of Filtration
The PAS1200 uses a special backward-curved blower and high-speed motor to pull pollutants through up to four stages of filtration.

Recessed Control Panel
The recessed control panel provides all controls in one location.

Control Panel Features:

• Variable speed control
• ‘Power On’ indicator lamp
• ‘Replace Pre-filter’ indicator lamp
• ‘Replace HEPA’ indicator lamp
• Hour meter
• Male power receptacle
• Pop-out circuit breaker

PAS1200 Portable Air Scrubber Specs

• Airflow* - 150-900 cfm
• Air Changes Per Hour - 6 ACH @ 9,000 ft³
• Net Weight with Filters - 85 pounds
• Shipping Weight - 95 pounds
• Dimensions (L x W x H) - 19.25”L x 22”W x 39”H
• Power Supply Requirements - 120 VAC, 60Hz, 15 amps
• Power Consumption - 3.5 amps or less
• GFCI-Protected Duplex Receptacle - Daisy-chain up to 3 units on one 15 amp circuit
• Motor/Blower - High-efficiency airfoil type motorized impeller rated for 100,000 hours, with thermal overload protection & auto reset
• Circuit Breaker - 12 amp pop-out style
• Electrical Safety - NRTL-certified to comply with UL Std. 507 & CAN/CSA Std. #C22.2 No. 113-M1984 for electrical safety
• Cabinet Material - 20 gauge corrosion-resistant stainless steel
• Cabinet Construction - Solid, aircraft-type rivets
• Built-in Dolly - Integral transport dolly with 8” rear wheels and solid, non-marking rubber tires, 360 ° swivel front casters and an ergonomic top handle for easy control and handling
• No Tools Pre-Filter Access - Hinged door secured by rotating latches, with full perimeter gasket seal to protect against bypass of contaminated air
• Pre-filter Mounting - Individual shelves for each pre-filter
• Filters:
  • Stage 1 pre-filter - Inexpensive, 1" deep FIBER-TRAPPER^® pre-filter for capturing large particulates; can be washed and reused or treated as a disposable (MERV 4)
  • Stage 2 pre-filter - 2"-deep pleated prefilter (MERV 8)
  • Stage 3 optional pre-filter - 2"-deep high-capacity VAPOR-LOCK^® carbon filter for gas and odor adsorption (MERV 7)
  • Final stage HEPA filter - IEST compliant metal-frame, HEPA filter with tested and certified minimum efficiency of 99.97% @ 0.3 microns

*Airflow ratings are based on third party testing conducted @ 120 VAC with clean filters in accordance with generally accepted testing methods using highly accurate electronic flow measurement equipment. Different testing methods may produce higher or lower results. Ratings have been rounded off to the nearest 50 cfm for convenience.
