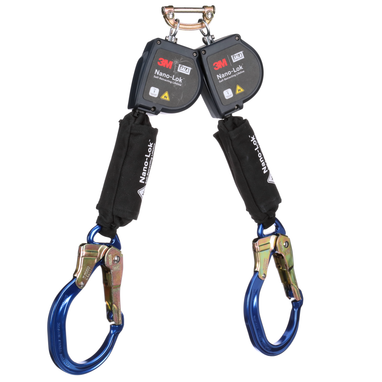

3M DBI-SALA Nano-Lok 8 ft. Web Class 1 Twin-Leg Arc Flash Self-Retracting Lifeline Quick Connect - Aluminum Rebar Lock Hooks - 3100588

3M DBI-SALA Nano-Lok 8 ft. Web Class 1 Twin-Leg Arc Flash Self-Retracting Lifeline Quick Connect - Aluminum Rebar Lock Hooks - 3100588

Class 1 Twin-Leg Arc Flash Self-Retracting Lifeline Quick Connect - Aluminum Rebar Lock Hooks - 8 ft.

3M DBI-SALA Nano-Lok Self-Retracting Lifeline is lightweight with a compact design and industrial-strength durability. 3M DBI-SALA Nano-Lok Self-Retracting Lifeline offers versatility for many different industrial applications.

3M DBI-SALA Nano-Lok Self-Retracting Lifeline is ideal for direct connection to most harnesses. Whether the application requires single or twin leg configurations, mounting to an overhead anchor, or connection directly to a harness, there are numerous models to choose from that suit almost any application. 3M DBI-SALA Nano-Lok Self-Retracting Lifeline locks quickly stopping a fall within inches - providing more protection at low heights. These features are key safety improvements and provide the user with additional security on the job.

• Compact & lightweight design
• Quick activating speed sensing brake system
• Durable thermoplastic housing
• Swivelling anchorage loop
• Built-in connector for direct attachment to harness
• High capacity external energy absorber and impact indicator
• RFID equipped and capatible with inventory management system
• Available in multiple styles and configurations

Replaces 3M Part # 3101540

Anchor Connection Type	Non Pertinent
Anchor Hook Material	Non Pertinent
Anchor Material	Non Pertinent
ANSI Class Level	Class 1
Color Family	Black
Harness Connection Hook Material	Zinc Plated Steel
Harness Connection Type	Single Pin Connector
Housing Material	Nylon Thermoplastic
Housing Type	Thermoplastic
Install Type	Portable & Removable
Leg Count	Twin-Leg
Lifeline Hook Material	Aluminum
Lifeline Length (Imperial)	8.0 ft
Lifeline Length (Metric)	2.4 m
Lifeline Material	Fire Resistant Web
Maximum Number of Users	One
Mounting Type	Direct to Harness Back
Net Weight (Imperial)	7.4 lb
Net Weight (Metric)	3.36 kg
Overall Length (Imperial)	8.0 ft
Overall Length (Metric)	2.4 m
Product Color	Black
Product Number	3100588
Product Series	Nano-Lok
Product Type	Self Retracting Lifeline
Recommended Application	General Industrial
Recommended Industry	Construction
Specifications Met	ANSI/ASSP Z359.14-2021
Style	Dual Leg
Weight Capacity (Imperial)	420.0 lb.
Weight Capacity (Metric)	190.0 kg

Type: Class 1

3M ID: 7012818562

3M Part #: 3100588

UPC/GTIN #: 648250242896
